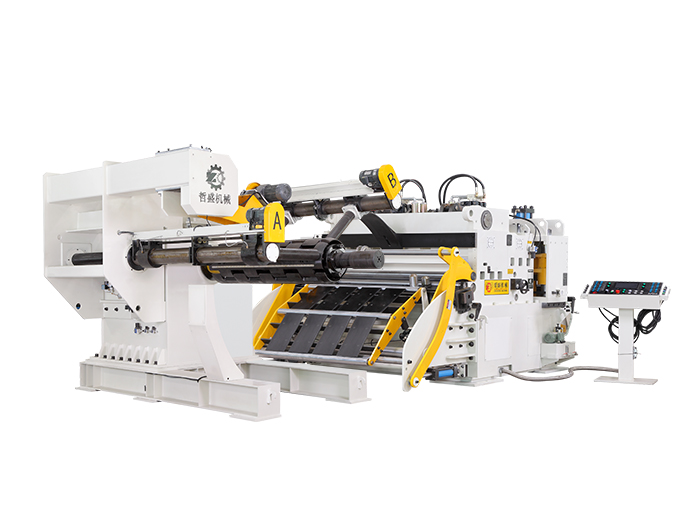

The three-in-one feeder is divided into three types: standard, medium plate and plate. The thickness of the material is 0.3-2.2mm thick for automatic consumption on the integrated machine according to the applicable classification standard. It is mainly used in computers and monitors. Precision stamping places such as printers and air-conditioner set-top boxes; 0.5-4.5mm thick plates in automatic consumption type three-in-one feeders, mainly used for electrical parts, auto parts stamping and other motor stator and rotor stamping plates.
At the same time, according to the demand of theoretical stamping consumption, add other auxiliary devices, such as hydraulic handling trolley, rack hydraulic expansion system, pressure arm, pneumatic block feeding arm, leveling material indenter device, lifting of electronic control system, automatic oiling Machines, etc.compared to the traditional split automatic stamping production line, the use of three-in-one feeder has three major advantages:
1. Wide application range, making automatic stamping processing of sheet metal possible. In fact, these three materials are automated equipment specially developed for the automatic processing of thick plate materials. It can not only process traditional stamping consumer lines, but also can be processed into sheets and plates. It can process thick plate materials and the most suitable materials. The thickness can reach 12mm.
2. Compact structure and small footprint. The traditional style of the stamping production line in the layout, frame materials, leveling machine, feeder three equipment between the three equipment must be reserved for a long time, the material is thicker, the required material waiting area, sometimes even over 10 meters, in the planning And the space layout is affected by the customer, and the three-in-one release will be packaged into three basic models, compact structure, no material waiting area, to maximize the customer's plant space.
3. small wear, low defect rate, long service life. The three-in-one feeder is designed with optimized structure, all parts and wear parts are of industry standard and have a fully automatic lubrication system.
