There is a very popular product in the feeder which is stamping and feeding equipment. The structure mainly includes punching and unloading, leveling machine and servo feeding. The three-in-one feeder is composed of simple structure, complete functions and reasonable reduction of the occupied space, and easy operation. But for the three-in-one feeder.

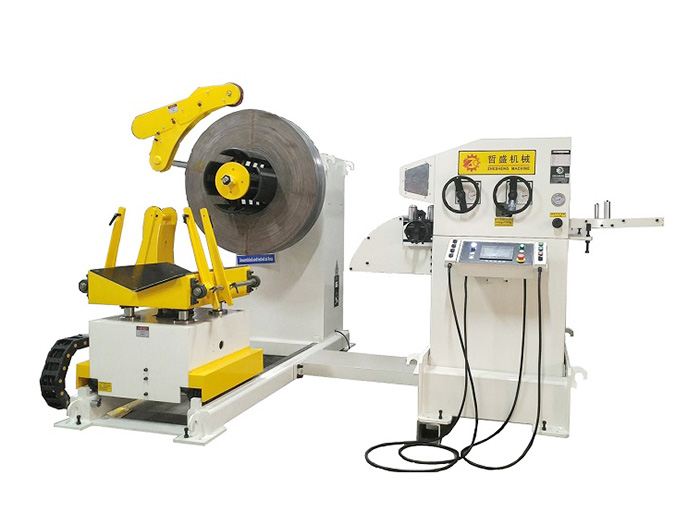

Why is there a punch feeder called a three-in-one feeder? The main reason is the name of its equipment structure. The three-in-one feeder is mainly composed of punching machine, leveling machine and servo feeder. It simplifies the structure of the fuselage and reduces the space occupied by the equipment. More convenient, next we introduce the different functions of the three-in-one feeder.
First, the punching rack function;
The three-in-one feeder material frame is made of welded frame and hydraulic expansion and contraction reel, and the blade type design is added to ensure that there is no gap in the rising state when the opening state is stable, and the motor is driven to open the coil (frequency control). There is a pressing device on the top to ensure no looseness, and the width of the pressing device is convenient to adjust; the material-rolling core-up mechanism has the design of the anti-rolling material in the coil and the anti-rolling material in the coil. The core-connecting block has a lock-proof design. The coil frame motor, brake brake mechanism and feeder drive inverter meet the load design. The material rack has the function of expanding the core to realize the repeated positioning of the coil material during the replacement of the coil material, and the material rack load can be customized according to customer requirements.
Second, the servo feeding device;
The servo feeder is equipped with the feeding and discharging centering adjustment mechanism, which is convenient and reliable for operation, replacement and maintenance. The false feeding detection device can detect the feeding length, and the feeding length can be set on the display as needed.
Third, precision automatic leveling machine;
The leveling machine in the three-in-one feeder is integrated with the feeder, driven by a servo motor; the gap between the upper and lower rollers is adjustable and the gap value is displayed. After leveling, there is no indentation on the surface of the sheet, and there will be no wave or undulation inequality after the material is leveled. The leveling machine's leveling roller drive gear set has good lubrication design, and the daily lubrication point check is convenient and reliable.
Four: easy loading, stamping;
The hydraulic loading trolley trolley adopts a V-shaped bracket, and the surface is made of pressure-resistant and wear-resistant plates, which is firm and reliable. The trolley is safe and reliable, the center of gravity is stable, and the structure is stable, ensuring that the coil material is placed on the trolley. During the moment of starting and during the movement of the trolley, the coil material does not appear to be turned over, tilted or dumped; the feeding is labor-saving, time-saving and safe.
