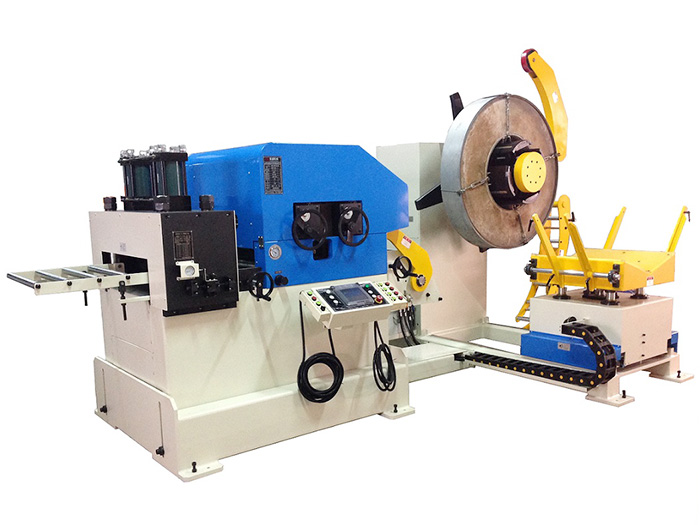

With the increasing occupancy of three-in-one feeders, many customers are not very familiar with how to properly use and operate this equipment. As a well-known domestic manufacturer of punch feeders, we will have professional technicians after customers purchase equipment. On-site technical support and answer any questions customers encounter during use. What is the correct way to use the three-in-one feeder?
First step, three-in-one feeder feeding step
1. Make sure that all circuits, oil lines and air lines are connected and there is no problem. Turn on the power and put the operation mode into manual mode. Press the “Rack Shrink” button to minimize the receipt of the rack. Then open the pressure arm air pressure switch, point the arrow to "A", then press the arm to release, then press the "Trolley Back" button to return the trolley to the last end;
2. Place the roll material vertically on the trolley, and then press the “Trolley Rise” or “Trolley Down” button to make the center of the roll material coincide with the center of the rack. After adjusting the center of the coil, press the “Trolley Forward” button to let the rack pass through the inner ring of the coil and make the center line of the material coincide with the center line of the straightening machine as much as possible. Expand the button to make the rack tighten the inner ring of the coil. At this time, point the arrow of the pressing arm switch to “B”, and let the pressing wheel of the pressing arm press the outer ring of the coil to confirm that there is no problem. The trolley is retracted to the last end and the loading is completed.
The second step, three-in-one feed, that is, the feeding method
1. Open the air control valve of the feeding device, let the feeding device lift up the supporting material, then open the air control valve of the pressing device, let the pressing roller lift up, then relax into the discharging cylinder, pull one end of the winding material, and put Between the upper and lower rollers of the flattening machine, put the operation mode switch on the electric control box into the manual mode, and jog the “leveling forward” button until the material completely extends out of the leveling machine, and adjust the stopper wheel locks on both sides. Tight, the feed is complete.
The third step is to adjust the three-in-one feeder equipment.
1. When adjusting the correcting effect, a piece of material with a length of about 1.5 meters without correction can be taken for debugging. The correcting effect is one of the important indexes of the correcting machine. The correcting machine has simplified the correcting and adjusting process, thus reflecting the high efficiency and low labor of the machine. The design idea of ​​strength.
2. When adjusting the leveling roller, it should be noted that the left and right adjustment handwheel should be adjusted synchronously. It can be adjusted with reference to the ruler, and then the material to be processed can be corrected to the requirements and then fed into the coil for automatic production.
Feeding method of four-in-one three-in-one feeder
1. Start the correcting machine or material frame, slowly release the material, jog the flattening wheel up or the flattening wheel down button, adjust the gap between the upper and lower wheels, and finally use the manual fine adjustment, and the function of the pressure spring is Applying pressure to the upper roller, so that the upper roller can press the material and send the material out, so the pressure should be based on the principle that the material does not slip, and the pressure should be greater when the thickness is thick;
2. After setting the feeding length, look at the actual situation and set the corresponding feeding speed. The method of setting will be described in detail later. When the relevant parameters of the feeding are set, due to the approximate number, the actual The feeding length is not the same as the set value, so in the manual mode, according to the feeding test, punching, stroke, stamping, adjusting the actual length of the feeding, and then, when the tip of the guide pin in the mold enters the guide pin hole, Adjust the loose screw to the bearing that touches the loose bracket until the material is relaxed, and lock the screw nut (the pneumatically relaxed feeder should adjust the angle of relaxation, ie, about ±15° below).
